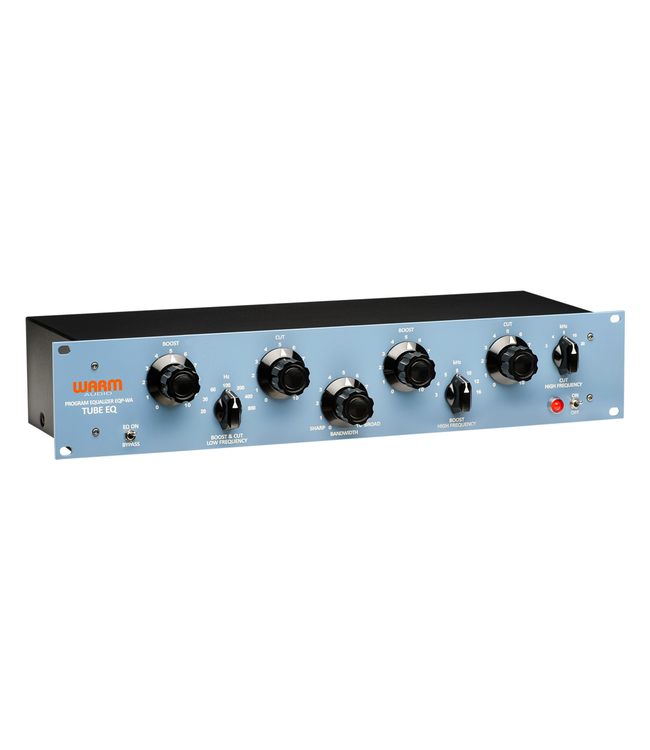

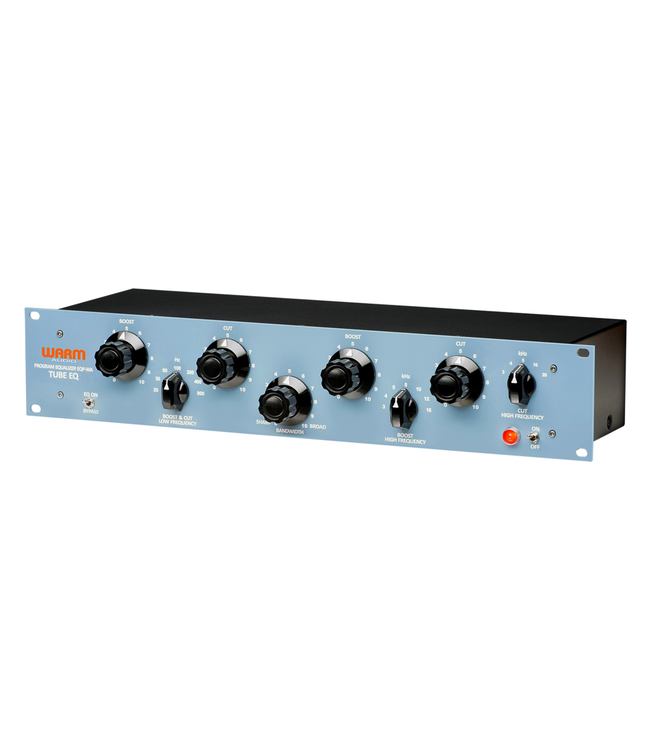

Pultec Style Tube Equalizer

The EQP-WA is a re-creation of the most renowned tube Equalizer in studio history, the "Pultec EQP-1A". Not only does the look and feel of the EQP-WA match the classic Pultec units, but the sonic quality has been carefully considered by using top-end components such as CineMag transformers and premium tubes. This fully discrete Tube EQ can pull euphoric sonics from any track and bring a brilliance and luster to mixes that’s nearly impossible to achieve inside-the-box. Warm Audio is proud to have once again redefined the industry standard by bringing a fully professional-grade equalizer to the market at a price that's just as remarkable as the unit.

Warm Audio's goal was to make a equalizer affordable for the first time, without compromising the quality and design parameters that make this type of equalizer so desirable.

Premium Components

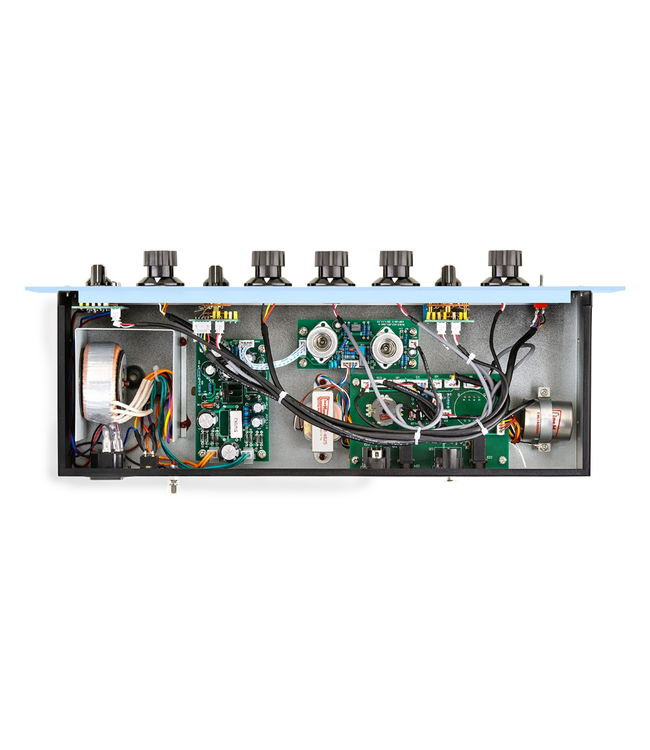

The EQP-WA is a high-voltage tube equalizer, utilzing CineMag USA Transformers and two premium vacuum tubes.

A Two Tube Operation

The EQP-WA operates on two tubes: one 12AX7 and one 12AU7. We proudly use premium brand tubes in this product for their sonic richness and 'open' sound. These 2 tubes are socketed for easy swapping and replacement.

Specifications:

• Utilizes premium grade input/output cinemag USA transformers.
• Tube equalizer based on the classic “Pultec” EQP-1A.
• Premium high voltage 12AX7 and 12AU7 tubes.
• Cinemag inductor EQ section.
• EQ section is bypassable - signal still passes through tubes and transformers for warming effect.

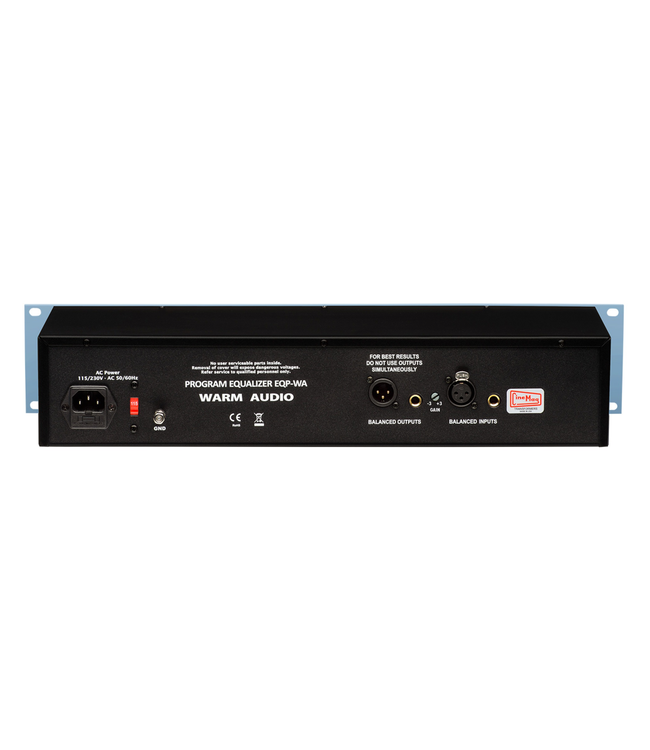

• XLR and TRS transformer balanced inputs/outputs.
• Flat frequency response from 20Hz - 50kHz.
• No insertion loss - loss restored by tube amplifier.
• 5 added frequency points for greater flexibility.
• Switchable 115/230 volt IEC power inlet.
• Low frequency boost - 20, 30, 60, 100, 200, 400, 800 Hz - 12 dB.
• Low frequency cut - 20, 30, 60, 100, 200, 400, 800 Hz - 18 dB.
• High frequency boost - 3, 4, 5, 8, 10, 12, 16 kHz - 18 dB.
• High frequency cut - 3, 4, 5, 10, 20 kHz - 14 dB.
• Boost and cut controls can be used simultaneously for phase effect.
• Dimensions: 2U rackmount chassis, 19” x 6” x 3.5”
